| ATTENUATORS - COUPLERS - DETECTORS etc | ||||
 |
HEWLETT PACKARD | |||
| Agilent E4412C | Power Sensor 10MHZ-18GHZ 100pW-100mW | |||
| 335D | Variable Attenuator DC-1000MHZ 120dB | |||

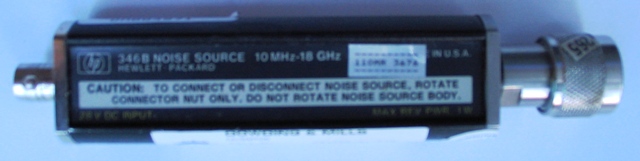

| 346B |
|
Noise Source 10MHZ-18GHZ | £750 | |
| 355C | Variable Attenuator 12dB 50 ohm DC-1GHZ 0.5W | £75 | ||
| 360C | Low Pass Filter | |||
| 423A | Crystal Detector | |||
| 423B | Crystal Detector | |||
| 478A | Power Sensor | |||
| 774D | Dual Directional Coupler 215-450MHZ 20dB | £175 | ||
| 778D | Dual Directional Coupler 0.1-20GHZ | |||
| 779D | Directional Coupler 1.7-12.4GHZ | |||
| 786D | Directional Detector 960-2110MHZ | |||
| 787D | Directional Detector 1.9-4.1GHZ | |||
| 798C | Directional Coupler 3.7-8.3GHZ | £125 | ||
| 903A | Coaxial Termination | |||
| 909A | Co-ax Termination APC | |||
| 8470A | Crystal Detector BNC/APC | |||
| 8478B | Power Sensor | |||
| 8481 | Power Sensor | |||
| 8481A | Power Sensor 10MHZ-18GHZ | £300 | ||
| 8481D | Power Sensor 10MHZ-18GHZ | £300 | ||
| 8481H | Power Sensor 10MHZ-18GHZ APC | £300 | ||
| 8483A | Power Sensor 100KHZ-2GHZ 750ohm with 50ohm adapter | £300 | ||
| 8484A | Power Sensor 10MHZ-18GHZ 0.1 nW to 10 microW | £200 | ||
| 8487D | 50MHZ-50GHZ 100pW-10microW | |||
| 8491A | Attenuator | |||
| 8491B | Attenuator DC-4GHZ 10dB | £50 | ||
| 8491C | Attenuator DC-18GHZ 10dB | |||
| 8491C | Attenuator DC-18GHZ 20dB | |||
| 8492A | Coaxial Attenuator 6dB Unused | £250 | ||
| 8492A | Coaxial Attenuator 10dB APC | |||
| 8493A | DC-12.4GHZ 3dB Unused | |||
| 8493B | Attenuator 20dB DC-18GHZ | |||
| 8494A | Variable Attenuator DC-4GHZ 11dB | £250 | ||
| 8494B | Variable Attenuator DC-18GHZ 11dB | £250 | ||
| 8494G | Variable Attenuator DC-4GHZ 11dB Programmable 1dB steps | |||
| 8494H | Variable Attenuator DC-18GHZ 11dB | £250 | ||
| 8495A | Variable Attenuator DC-4GHZ 70dB | £250 | ||
| 8495B | Variable Attenuator | |||
| 8495G | Attenuator Programmable DC-4GHZ 70dB | |||
| 8495H | Variable Attenuator DC-18GHZ 70dB Programmable | £250 | ||
| 8496A | Variable Attenuator DC-4GHZ 110dB | £250 | ||
| 8496G | Variable Attenuator DC-4GHZ 110dB Programmable 10dB steps | £250 | ||
| 8496H | Variable Attenuator DC-18GHZ 110dB Programmable 10dB steps | £300 | ||
| 8470B | Crystal Detector | £100 | ||
| 8761B | RF Switch SPDT | |||
| 8768K (33365K) | Multi Port Switch DC-26.5GHZ | |||
| 8769K (33366K) | Multi Port Switch DC-26.5GHZ | |||
| 11048B | Feed Thru Termination | |||
| 11048C | Feed Thru Termination 1W 50+/- 0.10 ohms | |||
| 11512A | Short | £20 | ||
| 11523A | Load Restistor BNC Male to APC | |||
| 11536A | 50 ohm TEE | £40 | ||
| 11549A | Power Divider | |||
| 11566A | Air Line 10cm APC | |||
| 11581A | Attenuator Set | £150 | ||
| 11582A | Attenuator Set | £200 | ||
| 11590A | Bias Network 1-12.4GHZ | |||
| 11590A | OPT001 Bias Network 1-18 GHZ | |||
| 11590B | OPT001 Bias Network 1-18 GHZ | |||
| 11602B | Transistor Fixture | |||
| 11606A | Rotary Airline APC | |||
| 11650A | Network Analyser Accessory Kit | |||
| 11664A | Detector | £250 | ||
| 11664B | Detector 0.01-26.5GHZ | |||
| 11664C | Detector Adapter | |||
| 11664E | Detector 0.01-26.5GHZ | |||
| 11665B | Modulator | £100 | ||
| 11666A | Reflectometer Bridge | £250 | ||
| 11667A | Power Splitter | £450 | ||
| 11687A | Adaptor 50 ohm-75ohm | £300 | ||
| 11693A | Limiter | |||
| 11708A | Ref. Attenuator | |||
| 11722A | Sensor Module 100KHZ-2.6GHZ | |||
| 11858A | Transistor Fixture Adaptor | |||
| 11904B | Adaptor SMA F to F | |||
| 15530A | Low Pass Filter 1MHZ | |||
| 15550C | Accessory Kit | |||
| 16316A | Convertor 100ohm Balanced / 50ohm Unbalanced |
£50 |
||
| 16442 | Test Fixture | |||
| 33001D | Pin Adsorptive Modulator | |||
| 33000D | Pin Adsorptive Modulator | |||
| 33008D | Pin Adsorptive Modulator | |||
| 33124A | Microwave Switch | |||
| 33311 |
 |
Co-Axial Switch 18GHZ | £100 | |
| 33311B | Co-Axial Switch | |||
| 33313C | Co-Axial Switch 26.5GHZ | £250 | ||
| 33320G | DC-4GHZ 11dB Programmable Attenuator | £250 | ||
| 33320H | DC-18GHZ 11dB Programmable Attenuator | £300 | ||
| 33321G | DC-4GHZ 70dB Programmable Attenuator | £250 | ||
| 33321H | DC-18GHZ 70dB Programmable Attenuator | £300 | ||
| 35678A | Calibration Kit 50 ohm | |||
| 83018A | Microwave Systems Amplifier 2-26.5GHZ | |||
| 84813A | Peak Power Sensor 0.5-26.5GHZ | |||
| 84907K | Attenuator DC-26.5GHZ 70dB | |||
| 85021A | Directional Bridge | |||
| 85025B | Detector 0.01-26.5GHZ | |||
| 85025C | Detector Adaptor | |||
| 85025E | Detector 0.01-26.5GHZ | |||
| 85027E | Directional Bridge 10MHZ-26.5GHZ with adaptors 85027-60004/60005/60006 | |||
| 85037B | Precision Detector 0.01-26.5GHZ | |||
| 85052B | Cal-Kit 3.5mm | |||
| 85052D | Calibration Kit 3.5mm | |||
| 85130B | Adapter Kit 3.5mm-7mm | |||
| 85620A | Mass Memory Module | |||
| 85700A | Memory Card 32K RAM | £50 | ||
| 87301D | Directional Coupler 1-40GHZ - 13dB | |||
| 87512A | Transmission/Reflection Test Set DC-2GHZ | |||
| U752C | Directional Coupler 40-60GHZ 10dB Waveguide | |||
| U752D | Directional Coupler 40-60GHZ 20dB Waveguide | |||
| NARDA | ||||
| 27-BNF | Termination 8GHZ-20W | £60 | ||
| 230-412 | Short | |||
| 369 BNM | Terminator 0.7-18GHZ - 175W | |||
| 371 BNM | Co-Axial Terminator | |||
| 374 BNM | Termination DC-18GHZ 20W | |||
| 462B | Integrated Thermocouple Power Monitor 10MHZ-12.4GHZ | £75 | ||
| 757C | Attenuator DC-12.4GHZ 10dB | |||
| 766-10 | Attenuator DC-4GHZ 20W | £100 | ||
| 766-3 | Attenuator DC-4GHZ 20W | £100 | ||
| 766-F3 | Attenuator 0-4GHZ 20W | |||
| 768-10 | DC-11GHZ 20W 10dB | |||
| 768-20 | DC-11GHZ 20W 20dB | |||
| 773-10 | Attenuator DC-6GHZ 10dB | |||
| 792FM | Attenuator 2-12.4GHZ 20dB | |||
| 3000-10 | Co-Axial Directional Coupler | £150 | ||
| 3001-10 | Co-Axial Directional Coupler 460-950MHZ | |||
| 3001-30 | Co-Axial Directional Coupler | |||
| 3002-10 | Co-Axial Directional Coupler 0.95-2GHZ 500W 10dB | |||
| 3002-30 | Co-Axial Directional Coupler 0.95-2GHZ 500W 20dB | |||
| 3003-10 | Co-Axial Directional Coupler 2-4GHZ | £150 | ||
| 3003-20 | Co-Axial Directional Coupler 2-4GHZ | £150 | ||
| 3003-30 | Co-Axial Directional Coupler 2-4 GHZ | £150 | ||
| 3004-10 | Co-Axial Directional Coupler 4-10GHZ | £200 | ||
| 3004-20 | Co-Axial Directional Coupler 4-10GHZ | £200 | ||
| 3024 | Bi Directional Co-Axial Coupler 4-8GHZ 21dB | £150 | ||
| 3039-20 | Co-Axial Directional Coupler 0.125-0.250GHZ | £200 | ||
| 3042B-20 | Co-Axial Directional Coupler 0.92-2.2GHZ | £175 | ||
| 3043B-20 | Co-Axial Directional Coupler 1.7-4.2GHZ | |||
| 3044B-20 | Co-Axial Directional Coupler 3.7-8.3GHZ | £150 | ||
| 3045C-10 | Directional Coupler 7-12.4GHZ | |||
| 3059-20 | Directional Coupler 0.15-40MHZ | £50 | ||
| 3074 (5074) | Precision Reflection Coupler 3.7-8.3GHZ | |||
| 3075 (5075) | Precision Reflection Coupler 7-12.4GHZ | |||
| 3080 | Variable Probe Coupler | |||
| 3092 | Precision High Directivity Coupler 0.95-2.2GHZ | |||
| 3095 | Precision High Directivity Coupler 7-12.4GHZ | |||
| 3096 | Precision High Directivity Coupler 7-18GHZ | |||
| 3202B-10 | Directional Coupler 1-12.4GHZ 10dB | £200 | ||
| 3292-2 | Broadband High Directivity Coupler 1-18GHZ 13dB | £350 | ||
| 3326-2 | Power divider 6-18GHZ | £- | ||
| 40024 | Attenuator 20dB 20W | |||
| 4012C-10 | 1-2GHZ 10dB | |||
| 4053-10 | 2.6-5.2GHZ - 10dB | |||
| 4053-20 | 2.6-5.2GHZ - 20dB | |||
| 423B | Crystal Detector | £150 | ||
| 4203-10 | Directional Coupler 2-18GHZ | |||
| 4245B-10 | Coupler 4-12.4GHZ 50W 10dB | |||
| 4245B-20 | Coupler 4-12.4GHZ 50W 20db | |||
| 4772-20 | DC-6GHZ 20dB 2W | |||
| 4772-40 | Micropod Attenuator DC-6GHZ 40dB | |||
| 4781-6 | Attenuator 6dB | |||
| 4781-10 | Attenuator 10dB | |||
| 5072 | Precision Reflectometer Coupler 0.95-2.2 GHZ | |||
| 5082 | Precision High Directivity Bridge 2-18GHZ 0.5W | |||
| 5799 | Attenuator 18GHZ 10dB | |||
| 5799 | Attenuator 18GHZ 20dB | |||
| 60583 | Isolator SMA | |||
| 773-30 | DC-6GHZ 30dB | |||
| 776B-20 | DC-18GHZ 50W 20dB | £200 | ||
| 8502 | Attenuator 6dB | |||
| 8502 | Attenuator 10dB | |||
| MARCONI | ||||
| 2200/385 | Power Divider | |||
| 6230 | Detector | |||
| 6230A | Detector 10MHZ-20GHZ | |||
| 6511 | Power Head | £250 | ||
| 6512 | Detector 10MHZ-20GHZ APC7 | |||
| 6513 | Power Head 0.01-26.5GHZ | |||
| 6530/4 | Attenuator | |||
| 6534/1 | Attenuator DC-18GHZ 3dB | |||
| 6534/2 | Attenuator DC-18GHZ 6dB | |||
| 6534/3 | Attenuator DC-18GHZ 10dB | |||
| 6534/4 | Attenuator 20dB | |||
| 6535/4 | Attenuator DC-18GHZ 20dB | |||
| 6541 | Power Sensor | |||
| 6581A | 10MHZ-20GHZ Fault Locator Head | |||
| 6910 | Power Sensor 10MHZ-20GHZ | £200 | ||
| 6912 | Power Sensor 30KHZ-4.2GHZ | |||
| 6913 | Power Sensor 10MHZ-26.5GHZ | |||
| 6920 | Power Sensor 10MHZ-20GHZ | |||
| F6115-23 | ||||
| F6115-23A | ||||
| H38-0081-01 | Feeder Continuity Monitor | |||
| H38-0094-01 | Harmonic Filter & Isolator | |||
| TK2374 | Zero Loss Probe Kit for TF2370/2371 | £75 | ||
| IFR | ||||
| 6420 | Power Head | |||
| 6534/1 | Attenuator | |||
| 6534/4 | Attenuator | |||
| 59999-158 | Autotester 10MHZ-18GHZ | |||
| WEINSCHEL | ||||
| 1415 | Precision Reflection Set (M1404N/M1410-1.2/M1410-1.5/M1410-2.0) | |||
| 150T-62 | Attenuator DC-18GHZ 0-62/2dB | |||
| 1515 | Broadband Resistive Power Divider DC-18GHZ 1 Watt SMA | |||
| 1579 | Power Splitter DC-26.5 GHZ 50ohm 6dB | |||
| 3200-2 | Programmable Attenuator | |||
| 40-10-43 | Attenuator 10dB 150W 1.5GHZ | £125 | ||
| 46-6-34 | DC-18GHZ 25W | |||
| 5848 | Attenuator | |||
| 6530.4 | 1.5GHZ 19.88dB | |||
| AS-4 | Precision Attenuator Set | |||
| Model 1 | Attenuator | |||
| WILTRON | ||||
| 22N50 | Attenuator | £100 | ||
| 34AS50 | Adaptor | |||
| 41V-S | Precision Attenuator Set DC 60GHZ | |||
| 58A50 | SWR Bridge | |||
| 66G50A | VSWR Bridge 5-50MHZ 50 ohm | £200 | ||
| 66G50V | VSWR Bridge 200-400MHZ 50 ohm | £200 | ||
| 560-7K50 | Detector 10MHZ-40GHZ | £300 | ||
| 560-7N50 | RF Detector 10MHZ - 18.5GHZ +20 dBM | £125 | ||
| 560-7S50 | RF Detector 10MHZ - 18.5GHZ +20 dBM | £125 | ||
| 560-97A50-1 | SWR Auto tester 10MHZ-19GHZ 40dB | |||
| 560-97F30-1 | SWR Auto tester | |||
| 560-97SF50 | SWR Auto tester | £500 | ||
| 560-98S50 | SWR Auto tester | |||
| 6400-71N50 | RF Detector | |||
| 74N50 | RF Detector (neg) 10MHZ-12.4GHZ | |||
| 74S50 | RF Detector | |||
| 760-97A | 50-1 | |||
| K250 | Bias Tee | |||
| RHODE & SCHWARZ | ||||
| RBD | UHF Attenuator & Dummyload 0-600MHZ 20W 50 ohm | |||
| BIRD | ||||
| 25-A-FFN 20 | 25 Watt 20dB | |||
| 4B5 | Power Sensor Thruline 50-125MHZ 5W | |||
| 4B10 | Power Sensor 50-125MHZ 10W | |||
| 50-A-FFN 20 | 50 Watt 20dB | |||
| 8085 | Termaline Coaxial Resistor 50ohm 50 Watt 3.5GHZ | £100 | ||
| 8308-300N | DC-2GHZ 75W 30dB | |||
| 8340-200 | 50ohm 25W | |||
| 8341-200 | Coaxial Attenuator 40W 20dB 50ohm | |||
| 100-SA-MFN-03 | RF Co-axial Attenuator Bi-directional 100W 3dB 50 ohm DC-1GHZ | £125 | ||
| MISCELLANEOUS | ||||
| Ailtech | 7615 Noise Source 0.01-1.5GHZ | |||
| Ailtech | 7616 Noise Source 1-12.4GHZ | £500 | ||
| Anaren Balmixer | 70340 2.6-5.2GHZ | |||
| Anritsu | MP712A Power Sensor 18-26.5GHZ 22dBM Waveguide | |||
| ARRA Inc | 5843-10 | |||
| Avantek | AMT 401x2-31 26.5-40GHZ | |||
| BNOS Electronics | DL50-100 RF Termination 50ohm 100W | |||
| Eaton | 7660-139 Noise Generator 4.3-5.1GHZ 34.5 +/- 0.5dB | |||
| Filtronics | F10004 | |||
| Gigatronic | 80350A Peak Power Sensor 45MHZ-18GHZ | |||
| Greenpar | 50ohm Through Termination | |||
| Greenpar | Power Divider 1W 50ohm | |||
| Hatfield | 2105 Attenuator 100dB 50ohm 0-5W | |||
| Hatfield | 2108 Attenuator 91dB 50ohm 0.5W | |||
| Hatfield | MC290 Adaptor | |||
| Hughes | 45773H-1100 40-60GHZ 200ohm Waveguide | |||
| Hughes | 45776H-1100 75-110GHZ 200ohm Waveguide | |||
| Inter Continental | TRL-25-660 Microwave Calibration Kit | |||
| K&L Microwave Inc | 6L250-3500-O/O | |||
| K&L Microwave Inc | 6L340-275-OP/N | |||
| Magnetic AB | L215D Noise Source 0.005-18GHZ SMA | £400 | ||
| Maury Microwave | 2610C 2-18GHZ | |||
| Maury Microwave | 2611G 2-18GHZ | |||
| Maury Microwave | 2611E 2-18GHZ | |||
| MCL | ZFSC2-2 Power Splitter 10-1000MHZ | |||
| Microcircuits | 15542 ZFDC-20-5 Coupler | |||
| Microcircuits | 15542 ZFBT-5G Bias Tee | |||
| Microcircuits | 15542 ZFSC-2-2 Splitter | |||
| Microcircuits | 15542 ZFM-2000 Mixer | |||
| Microcircuits | 15542 ZFAS-2000 Switch | |||
| Microlab/FXR | BK-8FF Band Pass Filter 4400-5000MHZ | |||
| Microlab/FXR | CA-45N 1-2GHZ 3dB | |||
| Microlab/FXR | CB-F49 | |||
| Microlab/FXR | CB-F50 | |||
| Midwest Microwave | 292 6dB DC-8GHZ | |||
| Midwest Microwave | 2055 Term | |||
| Midwest Microwave | 2533 Power Divider | |||
| Midwest Microwave | 2582 Adapter N to SMA | |||
| Midwest Microwave | 475 Attenuator 16dB 5W DC-6GHZ | |||
| Midwest Microwave | 475 attenuator 20dB 5W DC-6GHZ | |||
| Midwest Microwave | CPL-10-SMA-79 Coupler | |||
| Midwest Microwave | DCB-3524-10-NNN-02 Attenuator | |||
| Mini Circuits | 11542 ZMSC-2-1 Splitter | |||
| Mini Circuits | 15542 ZFBT-6GW Power Splitter | |||
| Mini Circuits | 15542 ZFDC-10-2 Coupler -10dB | |||
| Mini Circuits | 15542 ZMDC-10-1 Splitter | |||
| Mini Circuits | UNAT DC 6GHZ (1x3dB; 1x6dB; 1x10dB) | |||
| Mini Circuits | ZEL-0812LN | |||
| Mini Circuits | ZEL-1724LN Low Noise Amplifier | |||
| Nore Microwave | FIC 1500 | |||
| Nore Microwave | FIC 3061 | |||
| Olektron | O-HJ-10-8028 RF Power Divider 10 way | |||
| Olektron | O-HJ-10-8029 RF Power Divider 10 way | |||
| Omni Spectra | 15179 Power Divider 8-18GHZ | |||
| Omni Spectra | 16179 Power Divider 12.4-18GHZ | |||
| Omni Spectra | FSC 16179 1-12.4GHZ -10dB | |||
| Pacific Measurements | 13782 Detector 1MHZ-18GHZ | |||
| Pacific Measurements | 15177 Balanced Detector 1MHZ-18.5GHZ | |||
| Pacific Measurements | 15238 Detector Adaptor | |||
| Pascal | AC706 Attenuator 100dB 1W 600ohm | |||
| Polyphase | DGXZ-06NFNF-A 800MHZ-2500MHZ | |||
| Radio Astronomy Supplies | 1420MHZ LNA (33dB Gain/0.34dB NF) | |||
| Reactel Inc | 9HS-X1.8/12.75-S11 Filter | |||
| RYT Industries | 201767 | |||
| RYT Industries | 201890 | |||
| Suhner | 6506-19A Termination DC-12GHZ 50ohm 6W | |||
| Suhner | 6803-19-A Attenuator DC-18GHZ 3dB 50 ohm | |||
| Tektronix | 067-0503-00 Precision DC Divider | |||
| Tektronix | 067-0529-00 Cal Fixture 1000:1 Divider | |||
| Telonic | 8122A Attenuator 0-10dB | |||
| Telonic | TBP 146-21-6551 | |||
| Telonic | TLA 50-5ABZ | |||
| Texscan | RCB-3 Reflection Coefficient Bridge 1-18GHZ 13dB | |||
| Transco | RF Switch 28V DC 18GHZ | £40 | ||
| Trilithic | 8LM 100-3-KK | |||
